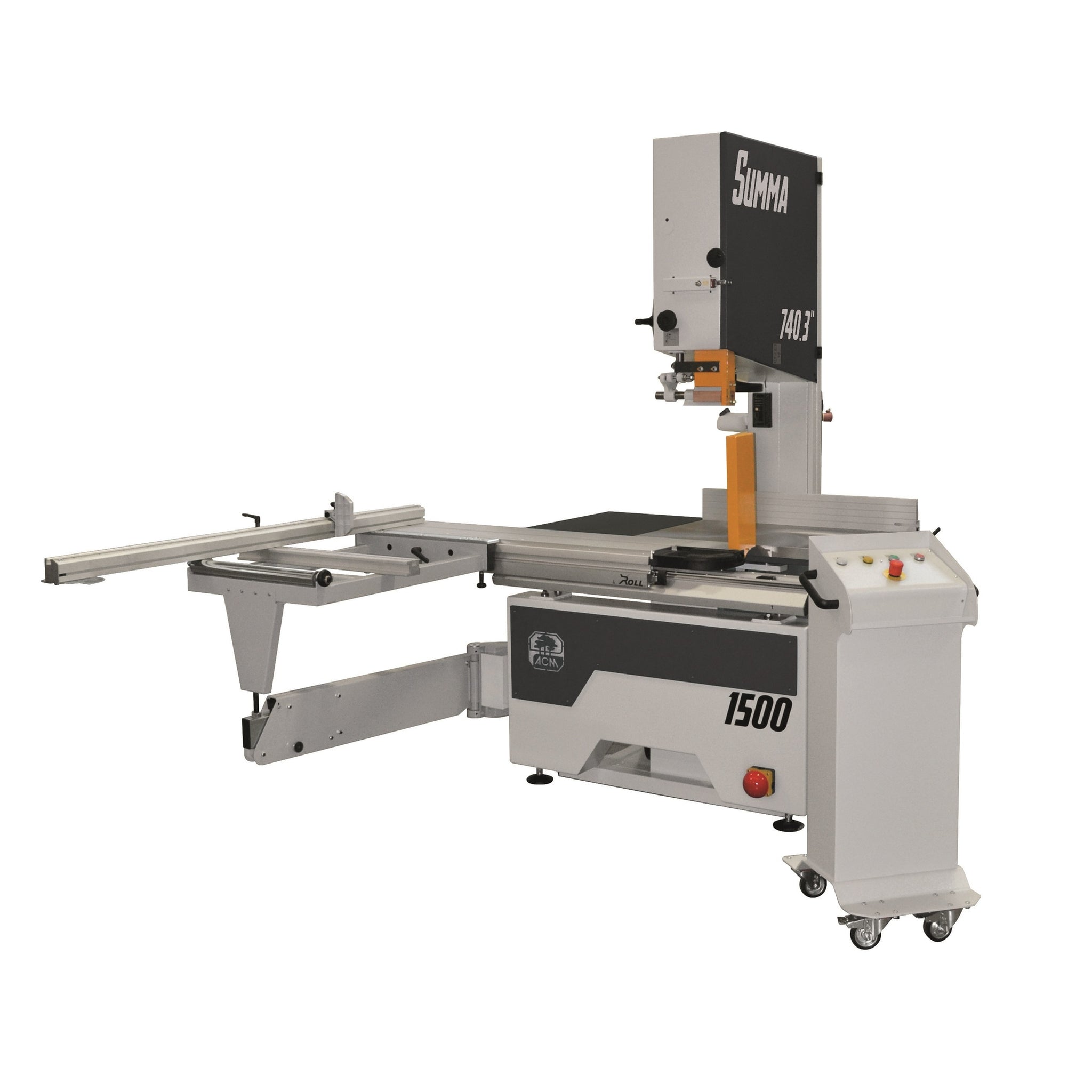

ACM Summa Band Saw with Sliding Carriage

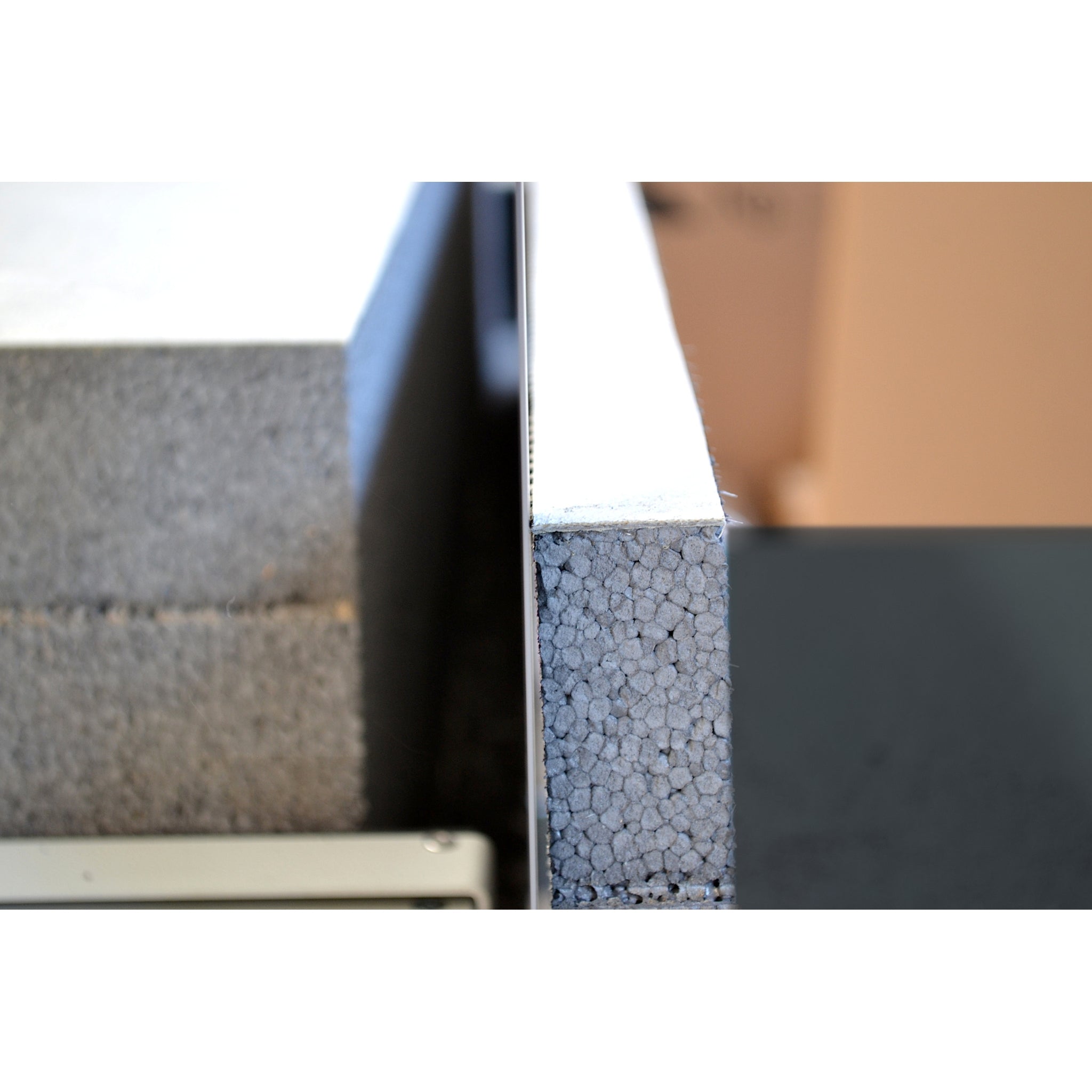

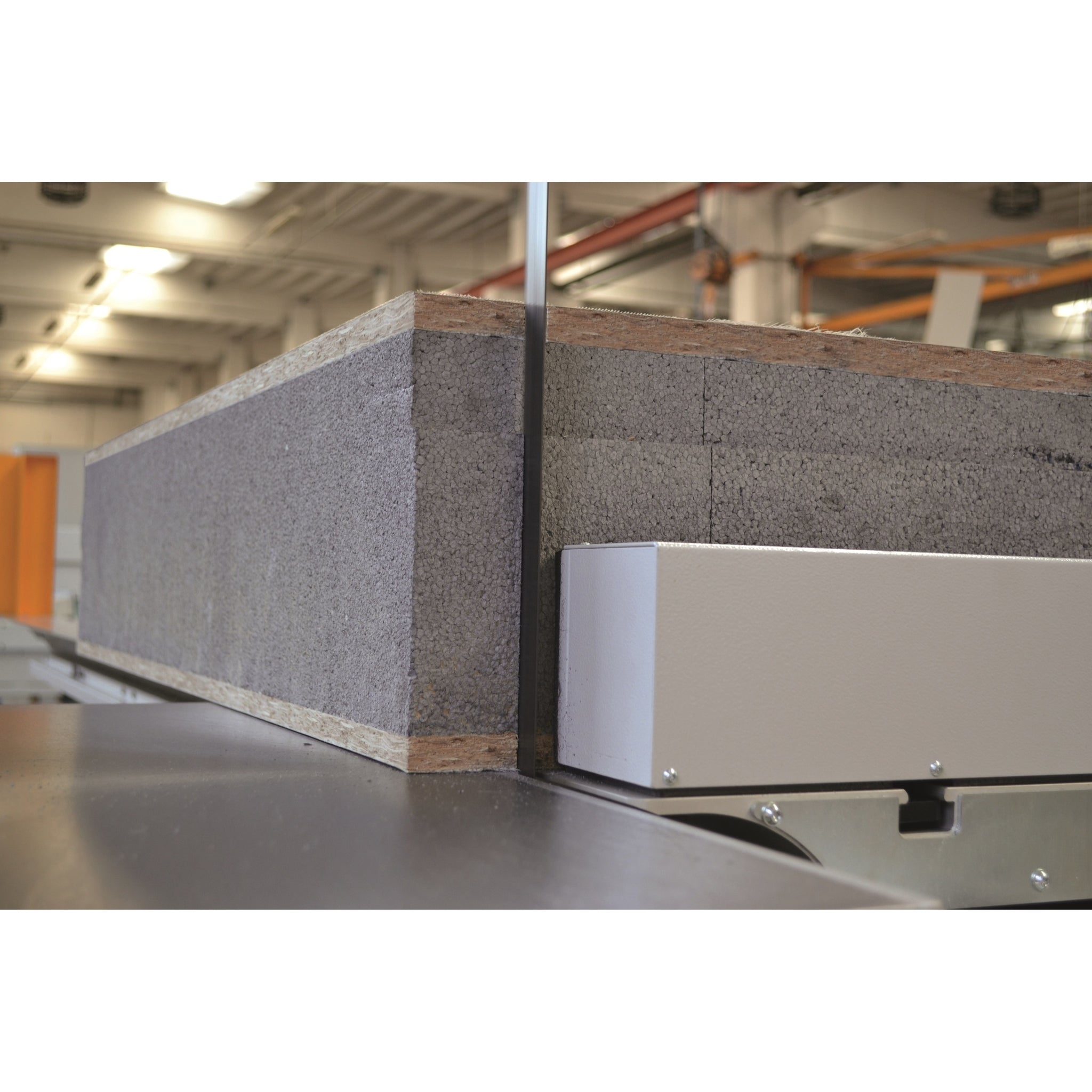

The ACM Summa is a high-precision band saw with aluminium sliding carriage, designed for straight 90° and angled cuts in solid wood, panels, and large-section timber.
Available in six configurations - 740 2", 740 3", 840 2", 940 2", 940 3", and 940 3" Special - with carriage lengths from 1500 mm to 3700 mm to suit every workshop size.
Key specifications:
• Flywheel diameter: 730–930 mm
• Motor power: 7.5–15 HP (5.5–11 kW)
• Blade speed: 1500–1700 m/min
• Max cutting height: up to 620 mm
• Cutting width: up to 910 mm
• Dust extraction: 2 × Ø140 mm outlets

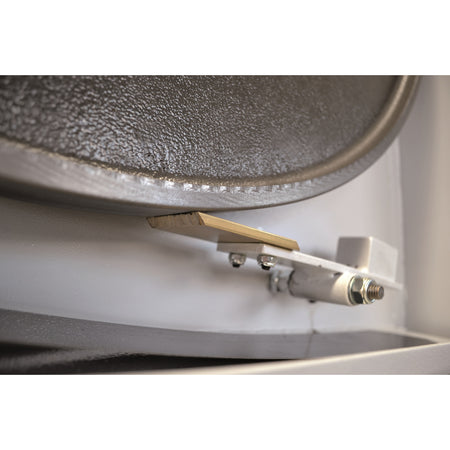

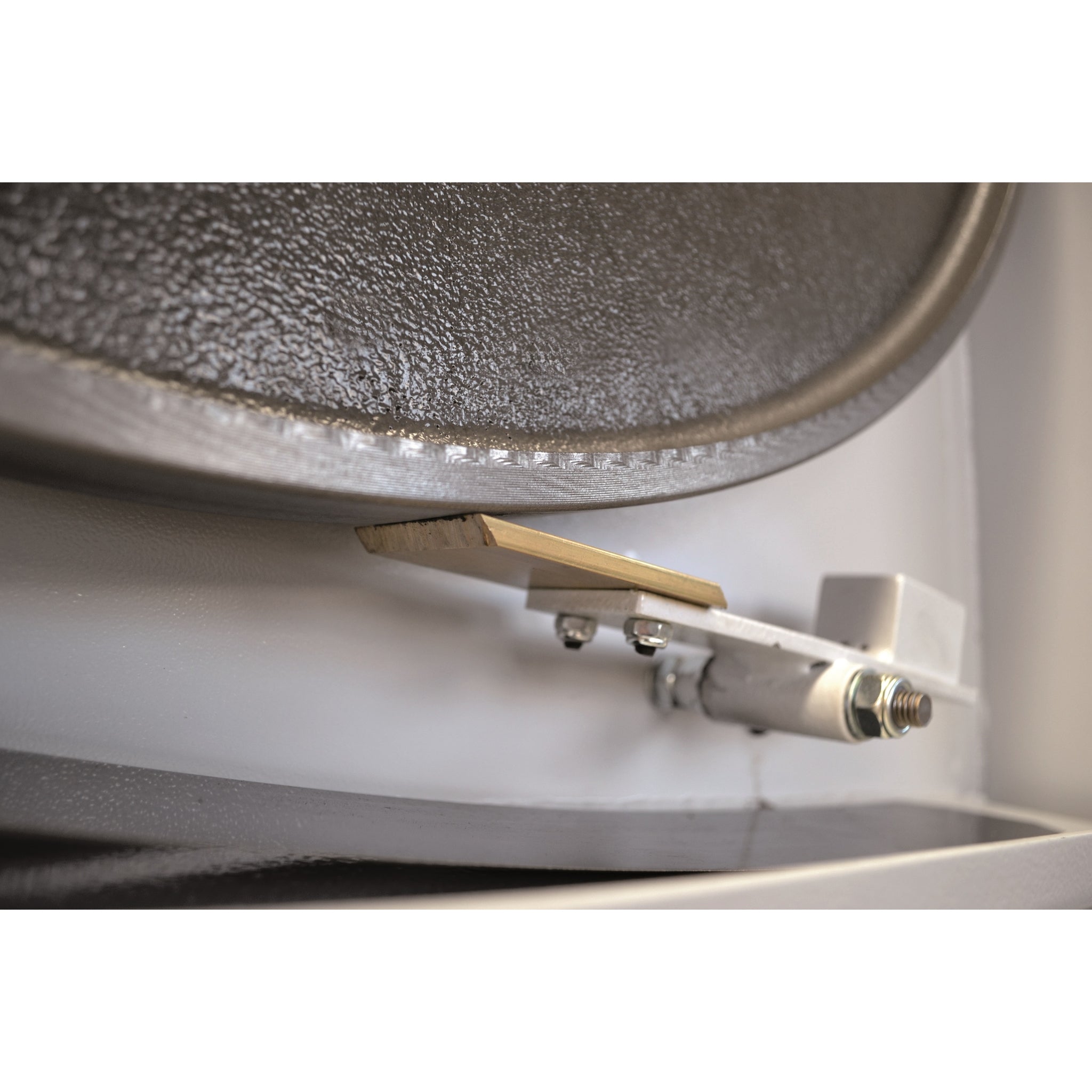

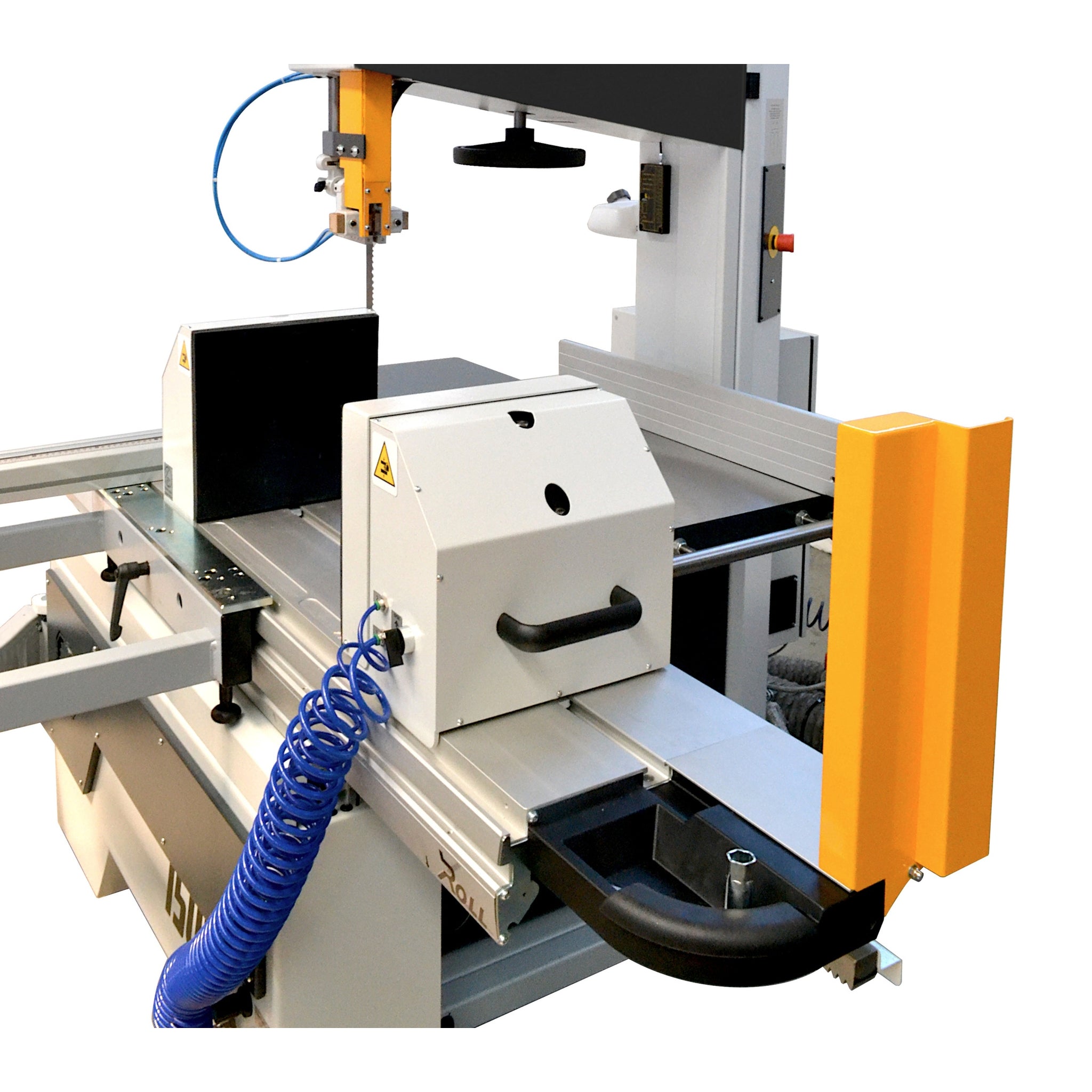

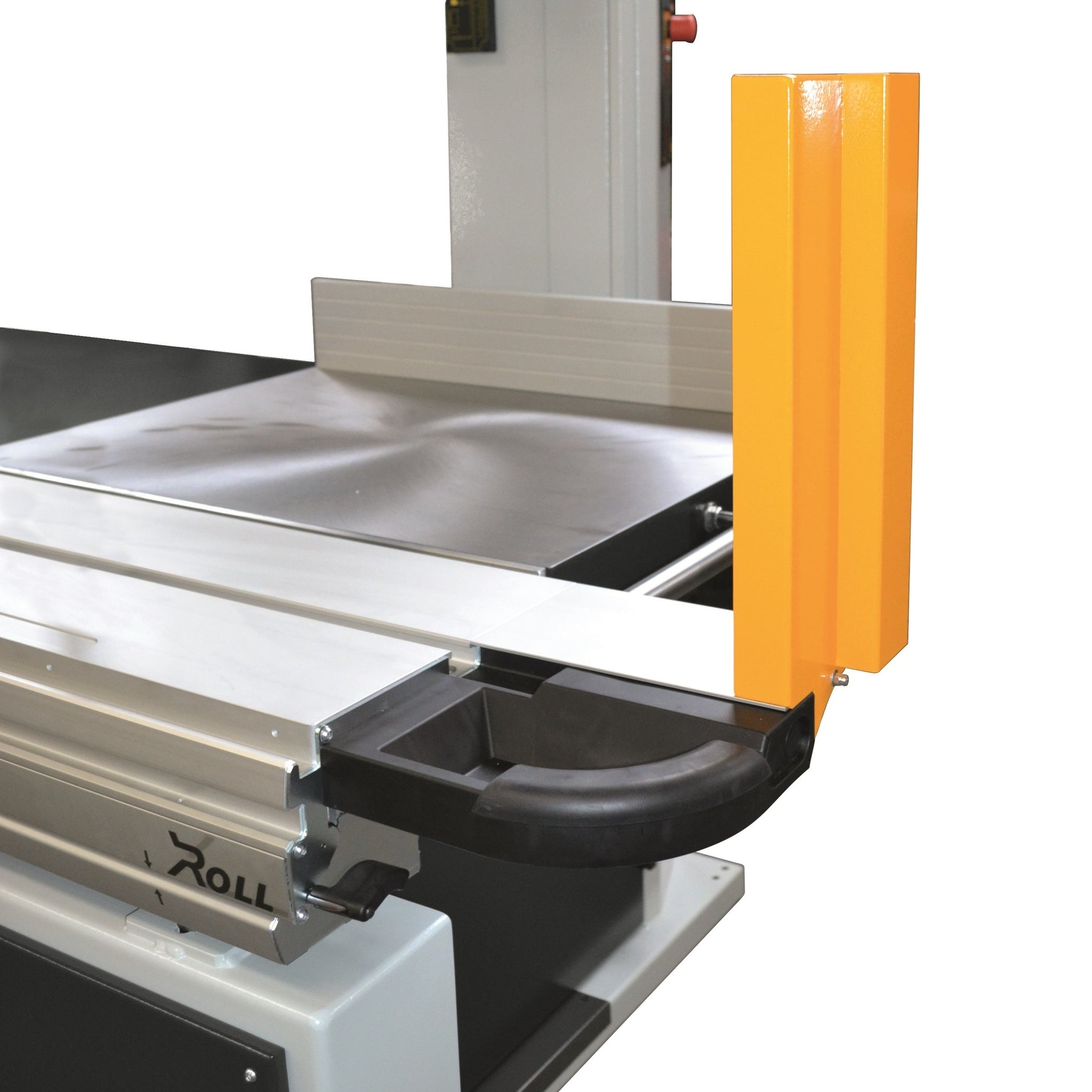

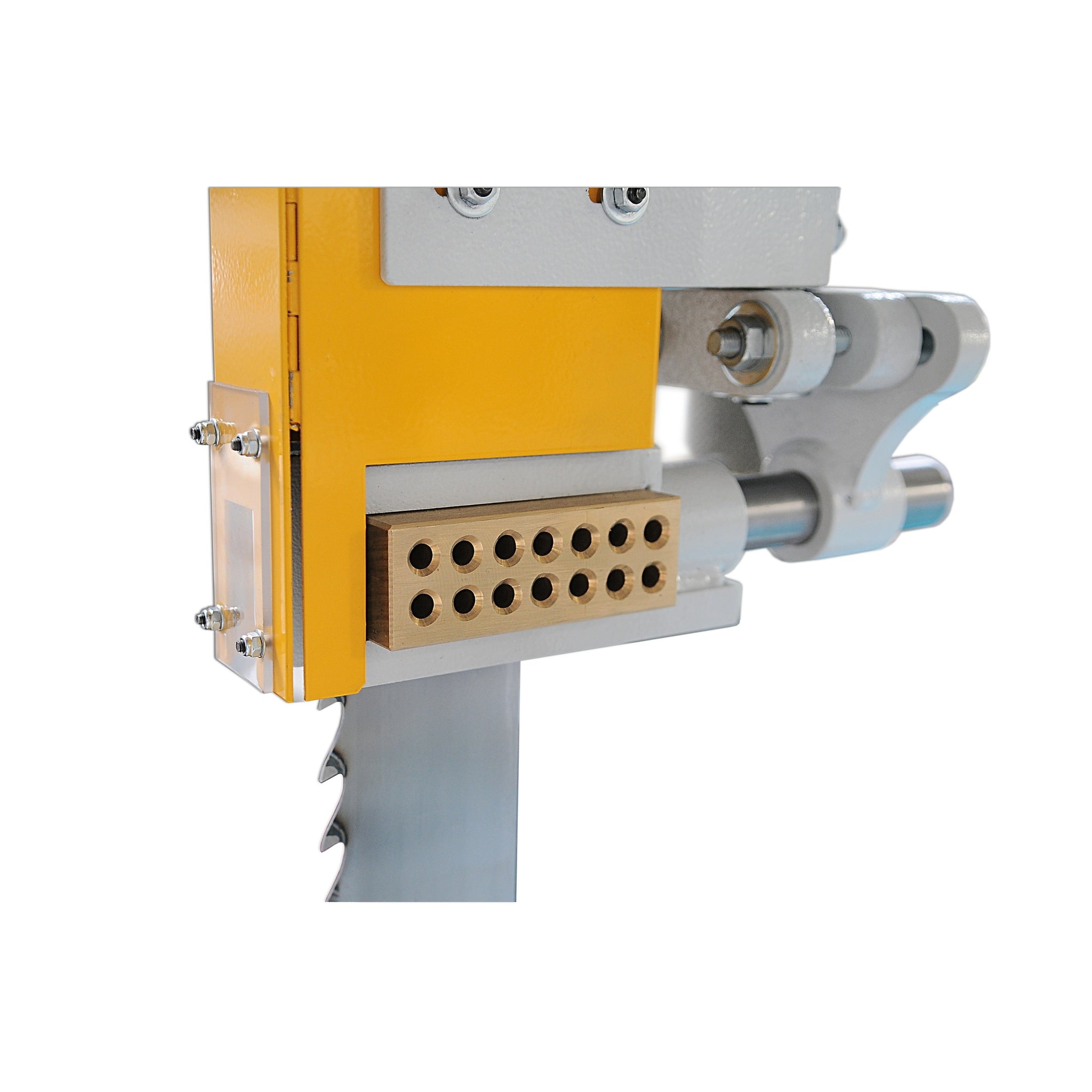

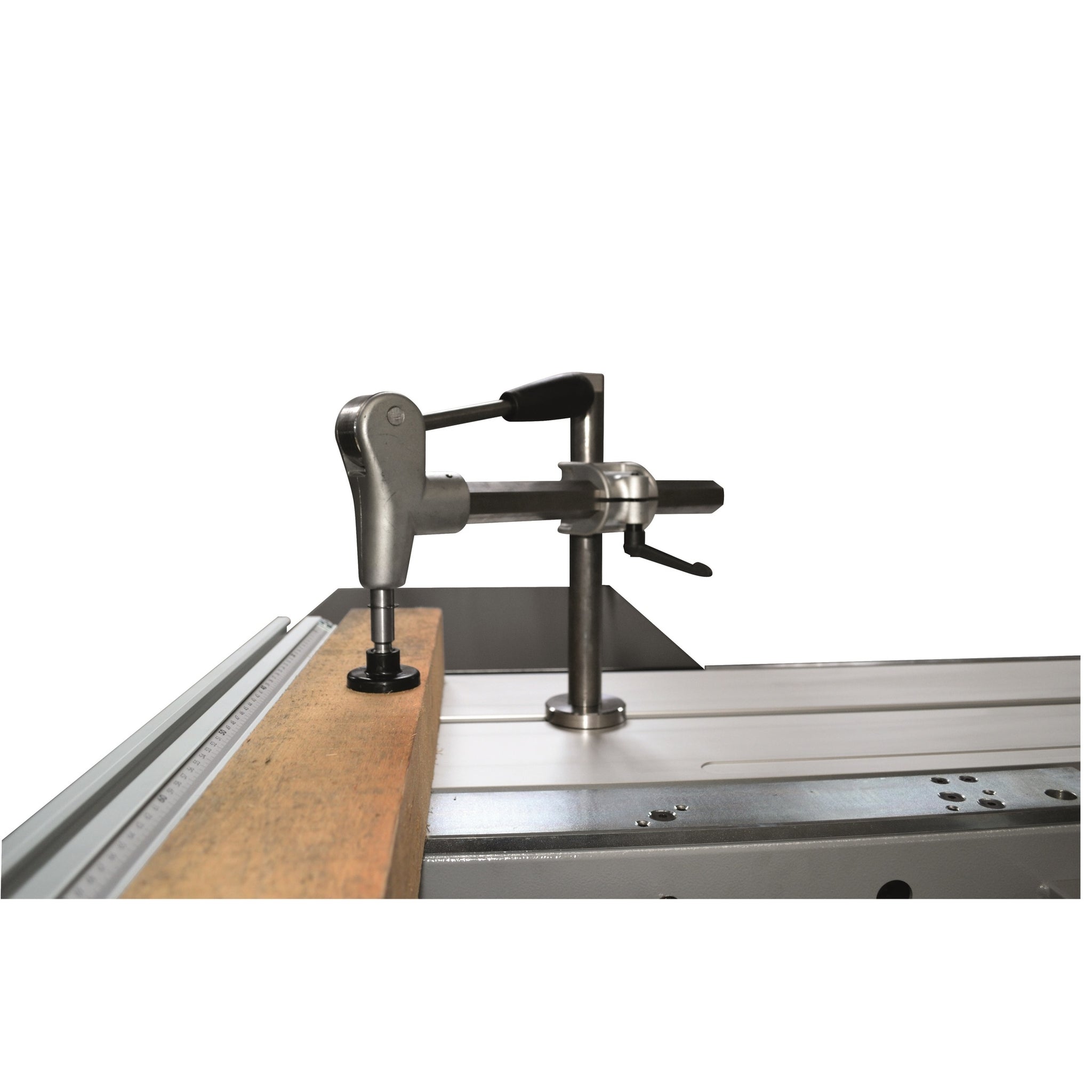

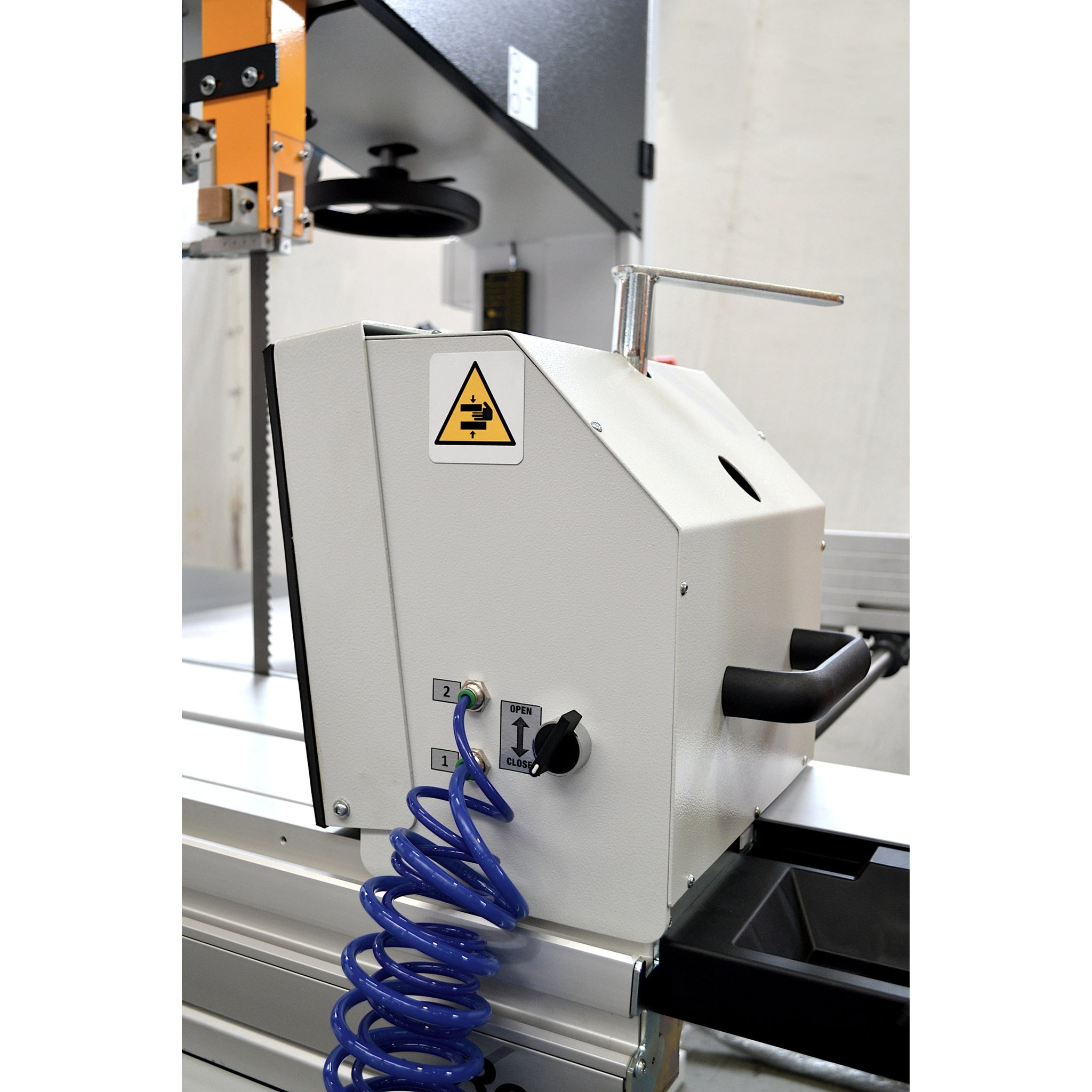

Standard features include a solid aluminium squaring carriage, solid flywheels without rubber, bronze cleaning scrapers, and a hand guard. Optional extras include ceramic or bronze blade guides, pneumatic clamping, suction table, automatic carriage feed, drip lubrication system, and a tiltable fence (0–90°, 225 mm height).
Special executions available on request, including cut heights up to 1000 mm.
