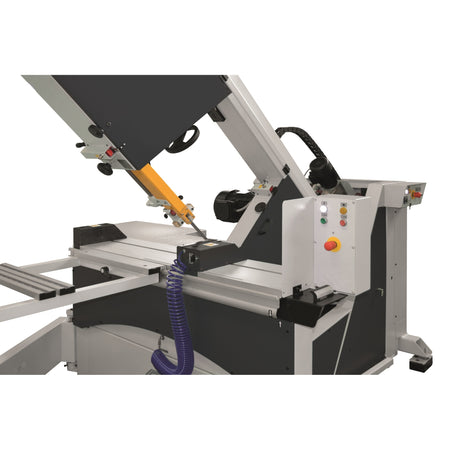

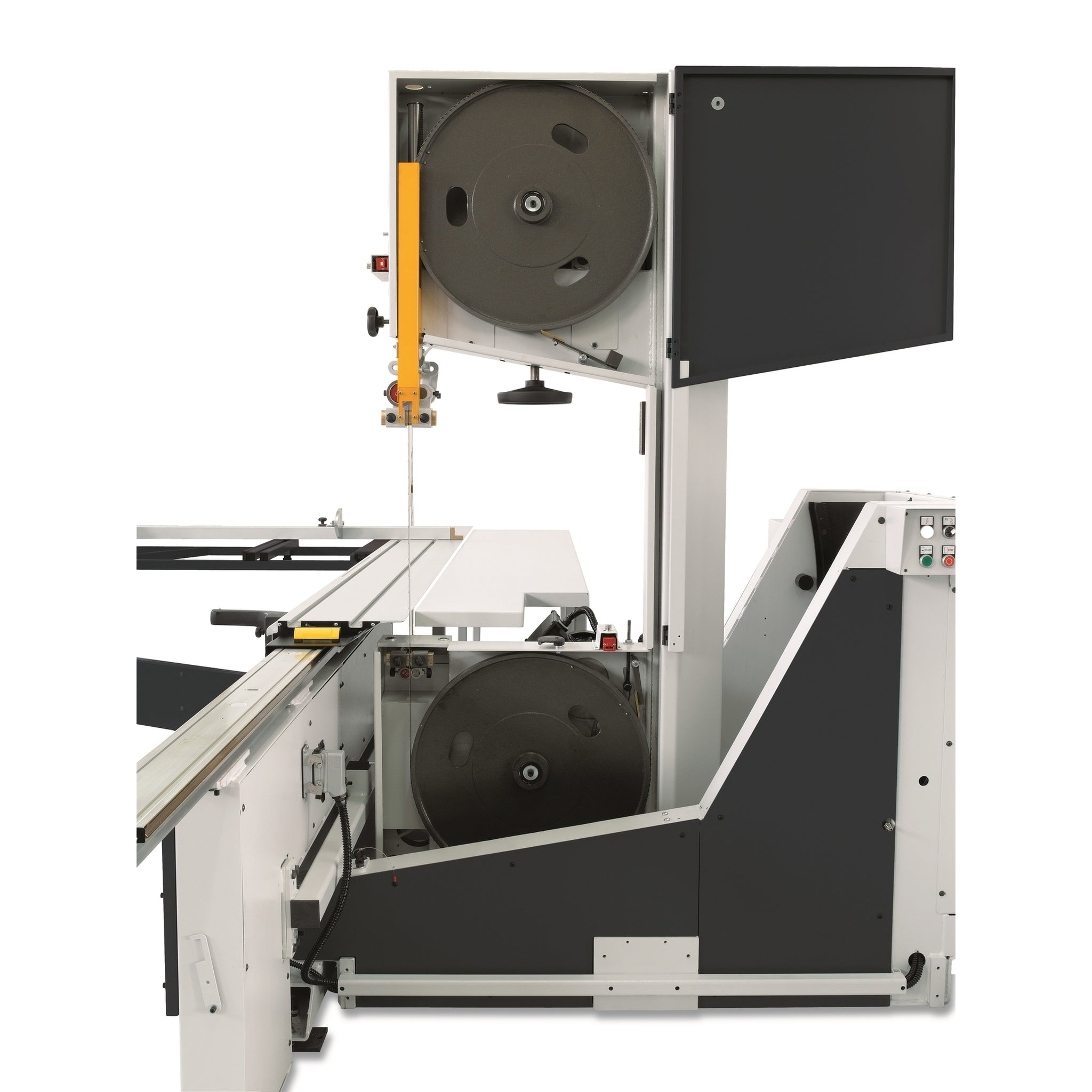

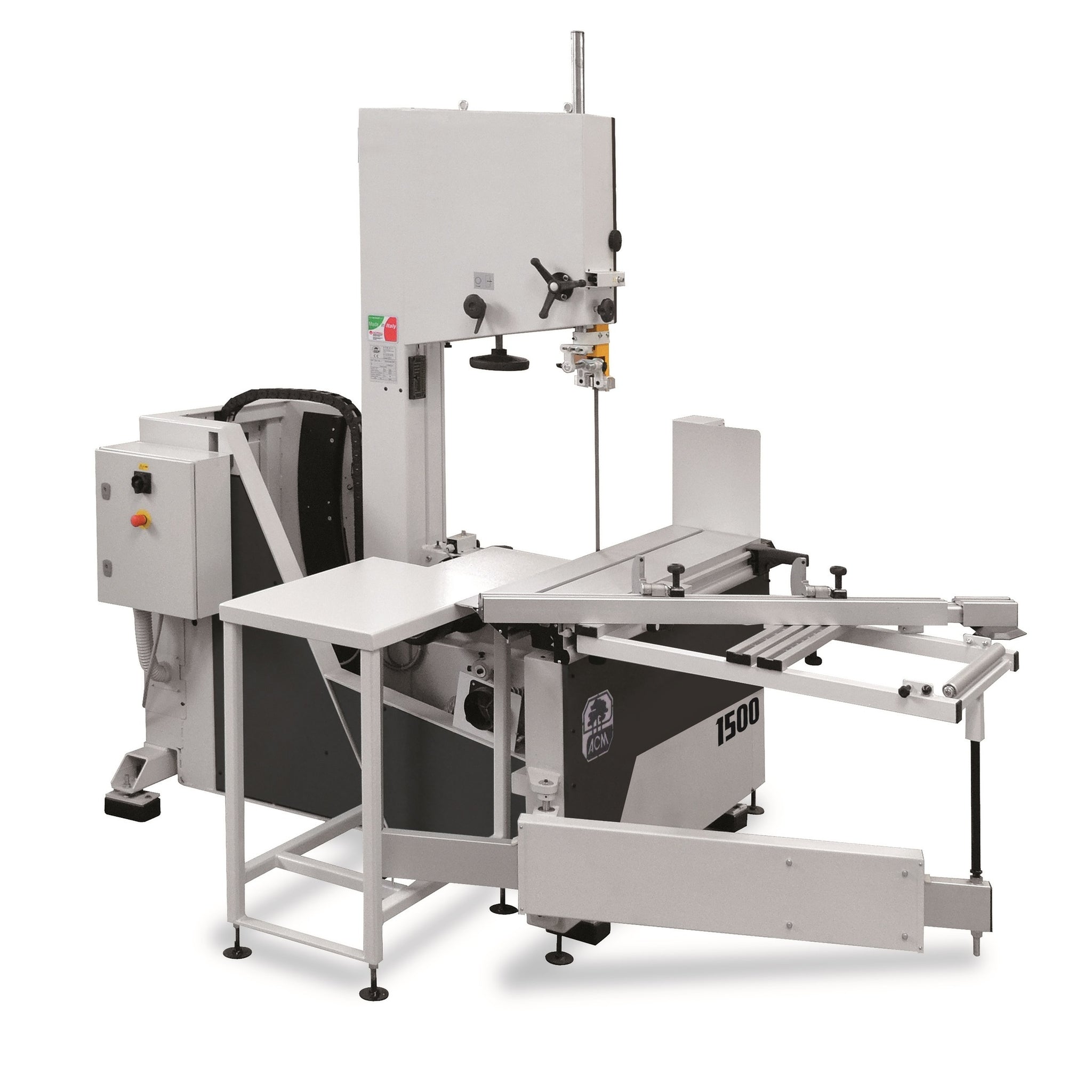

ACM Swing Tilting Band Saw with Carriage

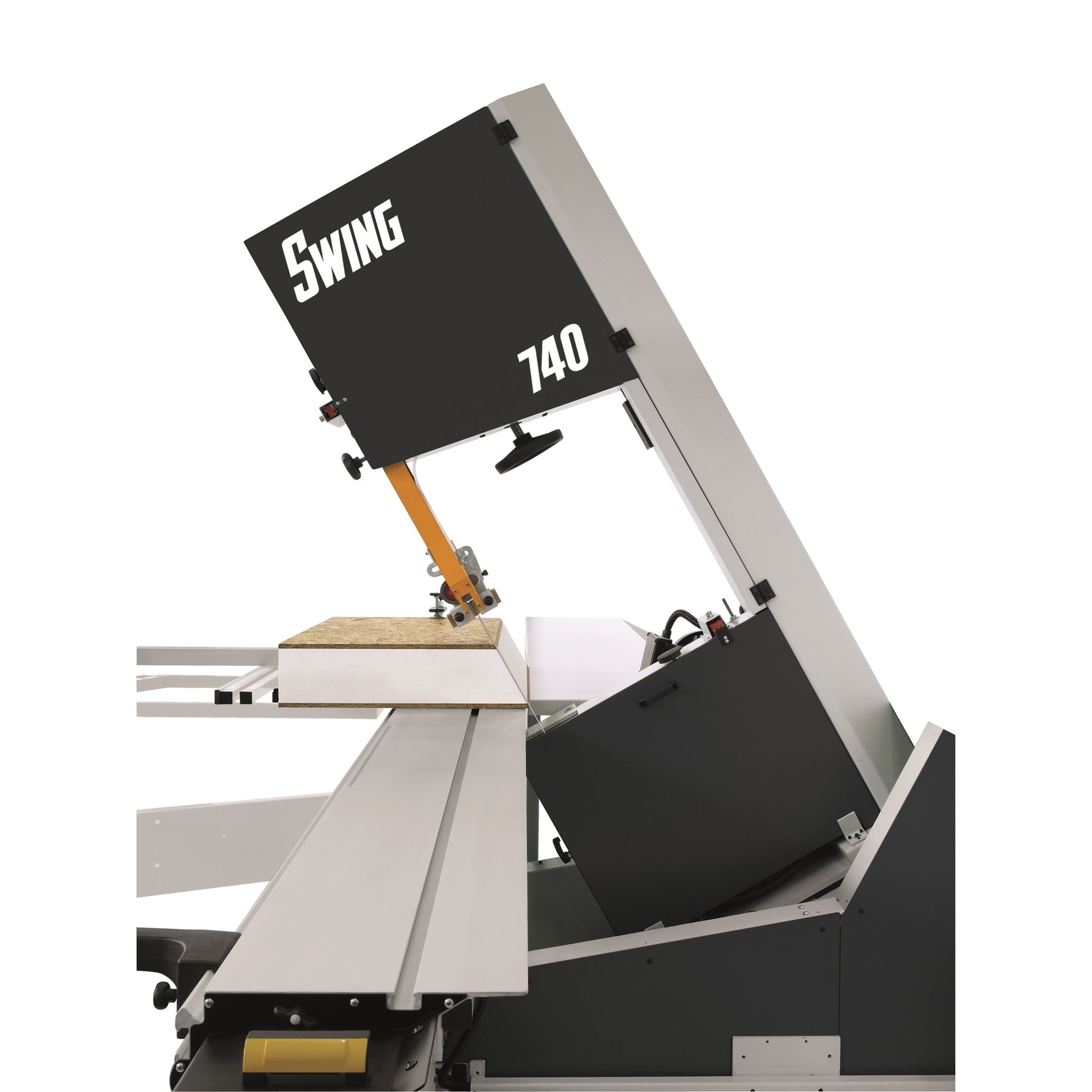

The ACM Swing is a tilting band saw with aluminium sliding carriage, capable of straight cuts at 90° and bevel cuts up to 45° - ideal for workshops requiring versatility in angle cutting without compromising on precision.

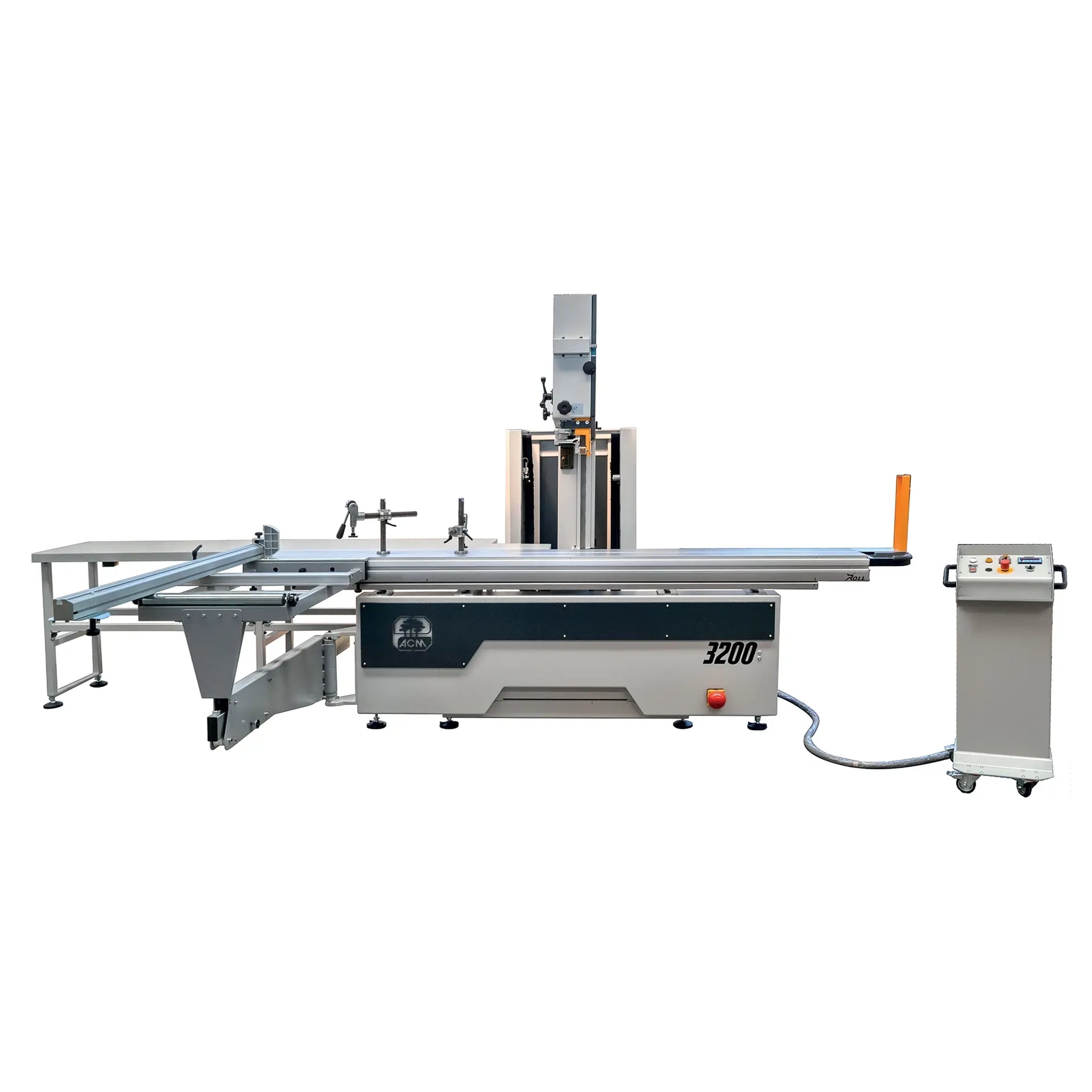

Available in two models - 640 2" and 740 3"- with carriage lengths from 1500 mm to 3700 mm.
Key specifications:
• Flywheel diameter: 630 mm (640 model) / 730 mm (740 model)
• Motor power: 5.5 HP / 4 kW (640) | 10 HP / 7.5 kW (740)
• Blade speed: 1400 m/min (640) | 1600 m/min (740)
• Max cutting height at 90°: 500 mm
• Max cutting height at 45°: 300 mm
• Blade width: 20–40 mm (640) | 60–80 mm (740)
• Dust extraction: 2 × Ø120 mm outlets

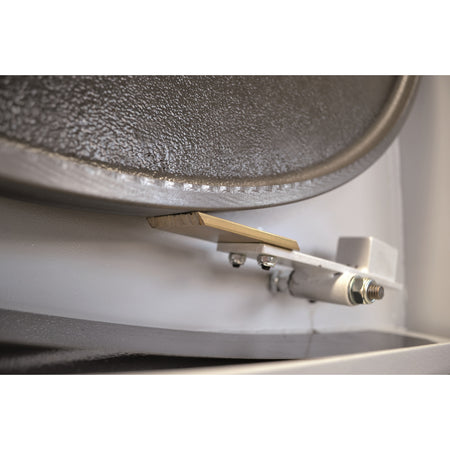

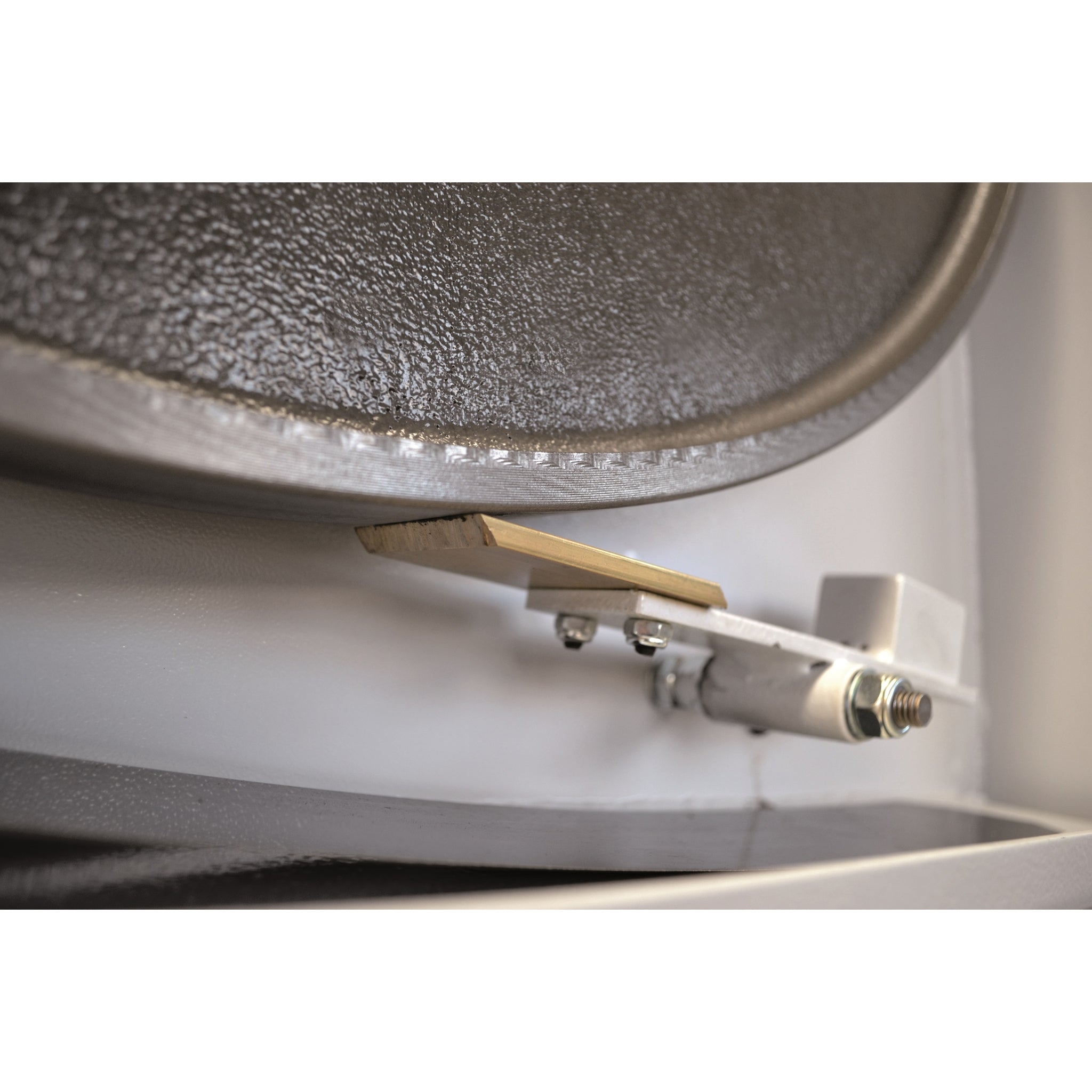

Standard equipment includes electric band saw tilting (0–45°), cast iron solid flywheels, bronze cleaning scrapers, wooden insert blade guides, self-braking motor, automatic star-delta starter, blade tension indicator, and a rack & pinion lifting system with integral blade protection.

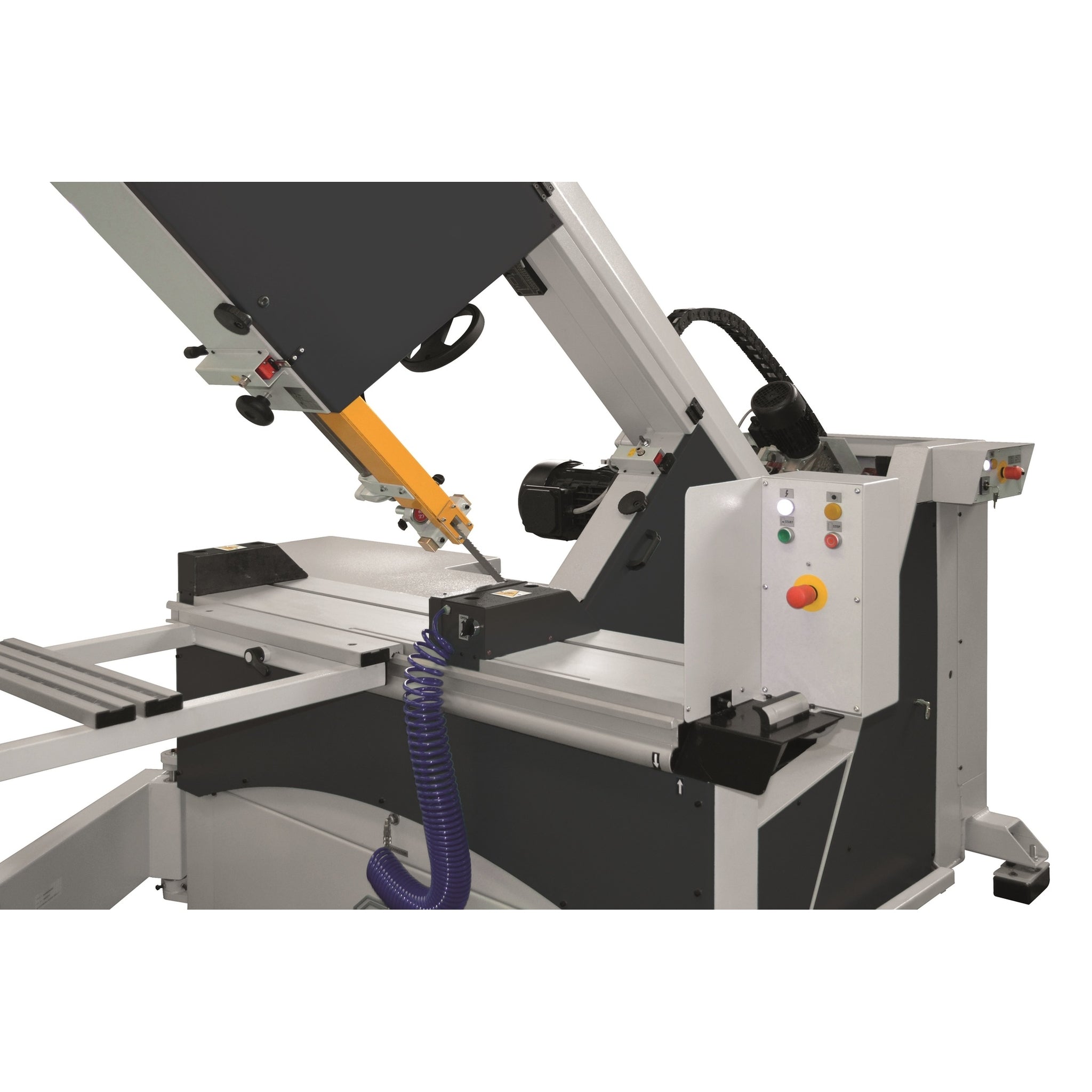

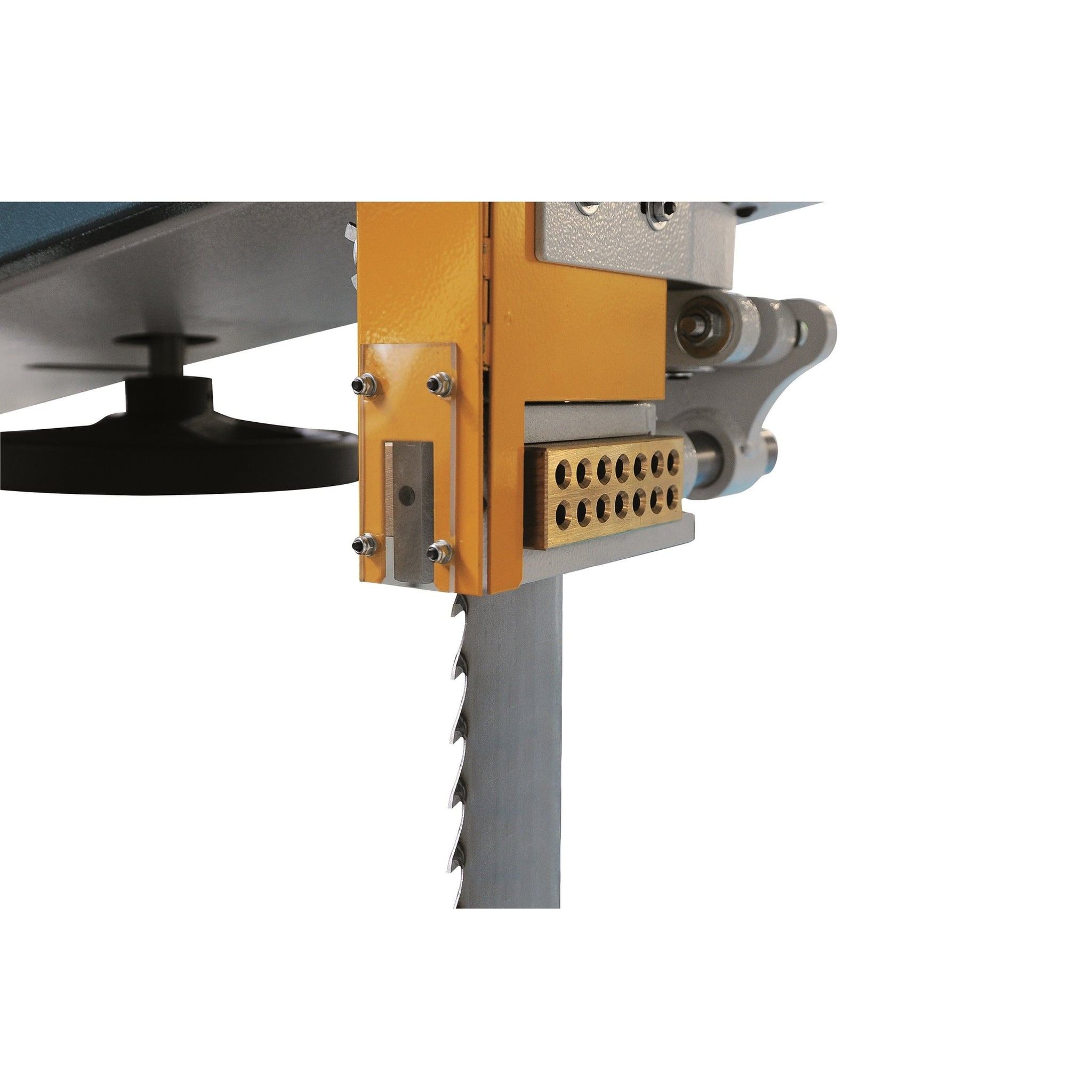

Optional extras include bronze blade guides, pneumatic clamping for straight and bevel cuts, eccentric woodpresser, and drip lubrication system.
