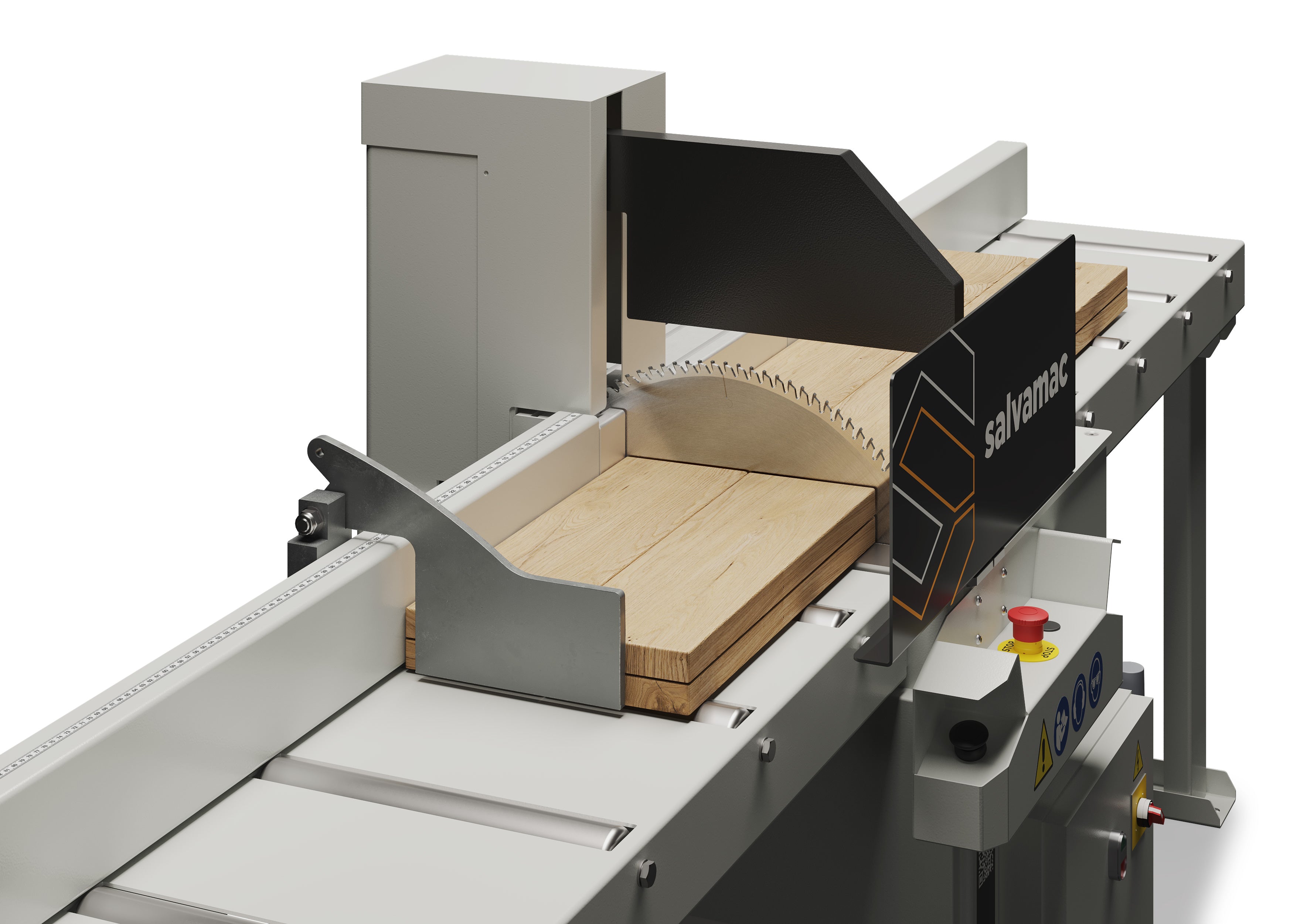

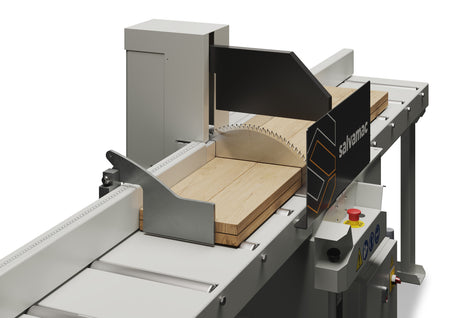

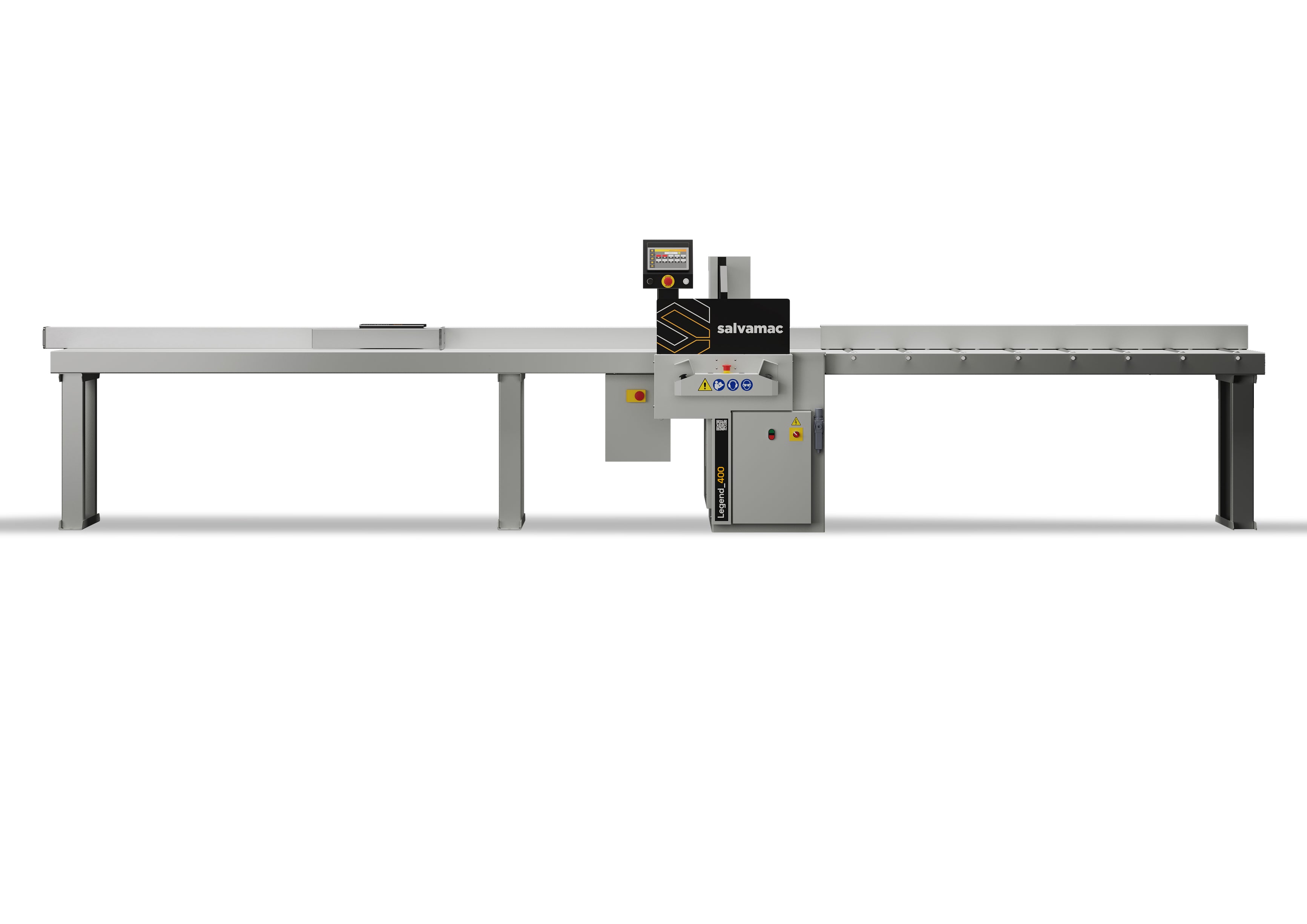

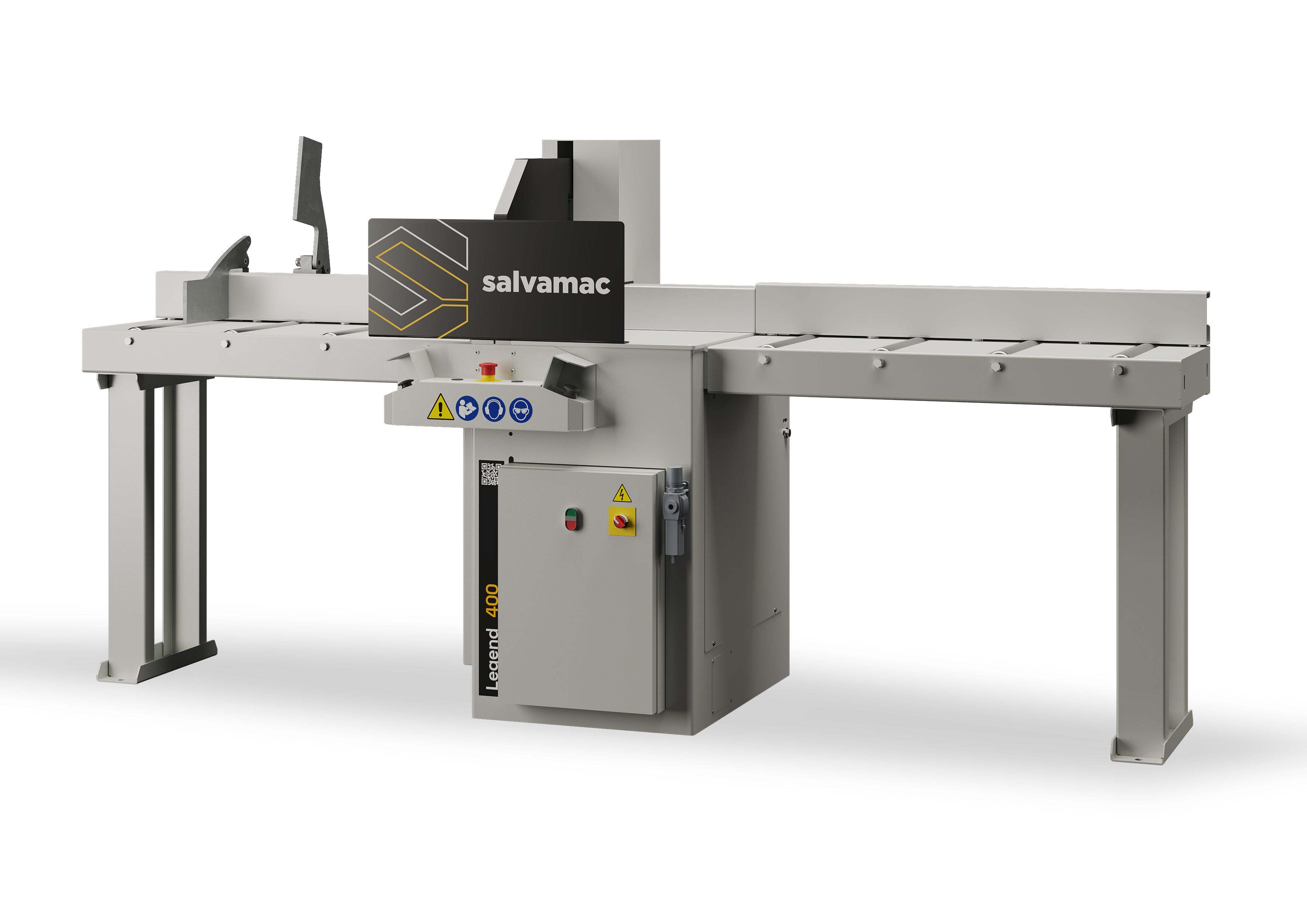

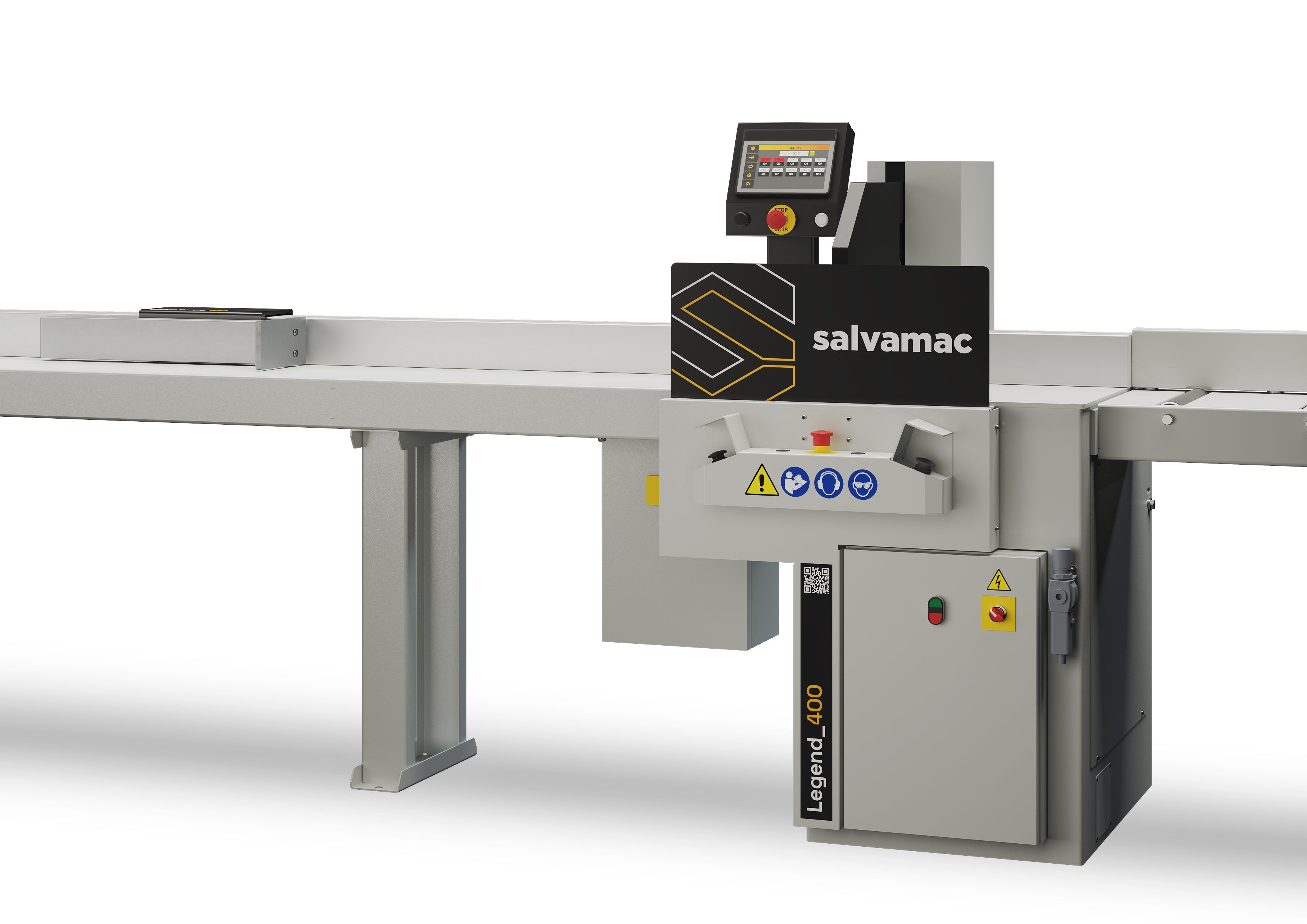

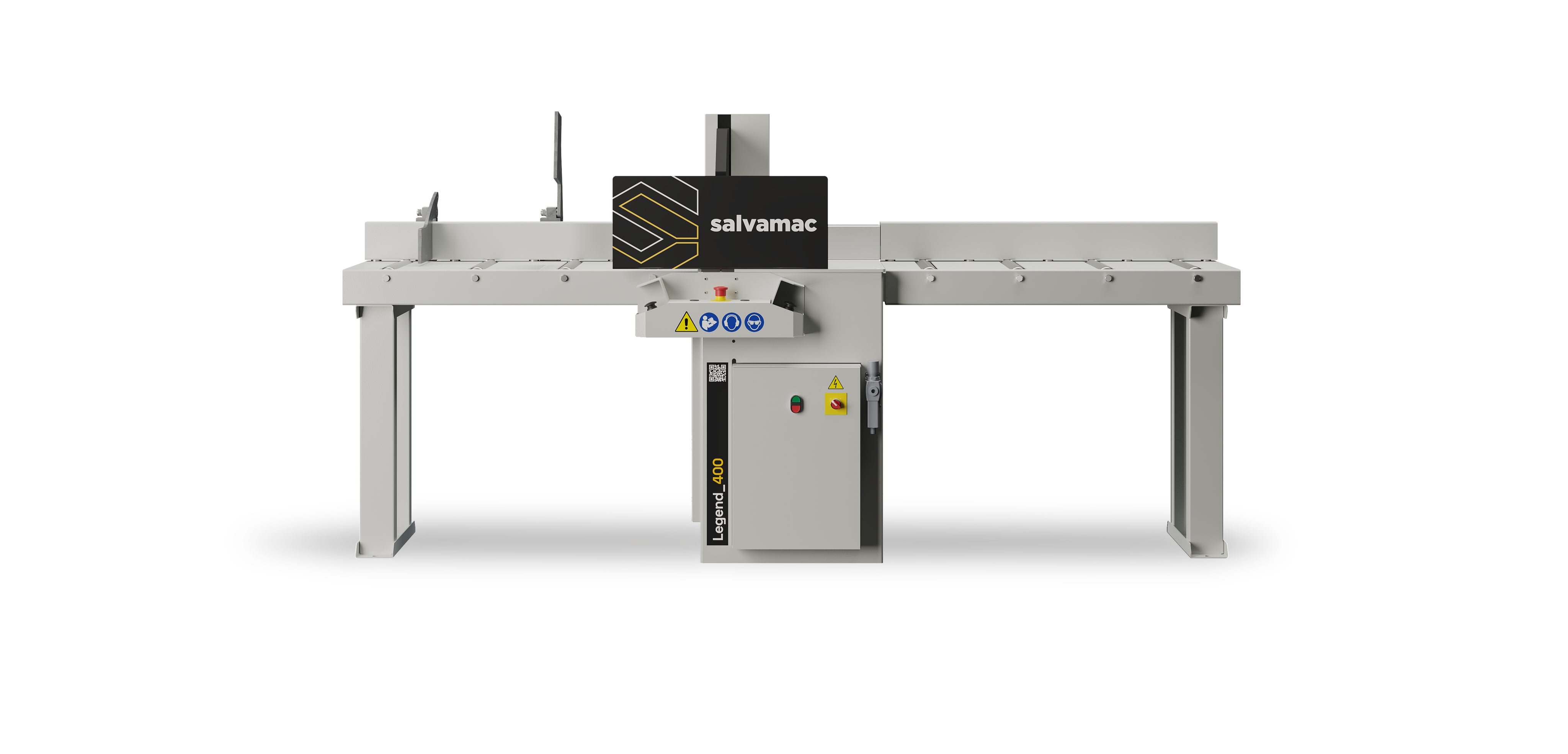

Legend 400
Semi-automatic upstroke saw for quick, safe and accurate crosscutting of medium-small cutting sections up to 80 mm thickness. The Legend 400 has a completely painted, thick and reinforced steel structure. The blade with a diameter of 400 mm, the power of 3.0 kW and the rotation speed of 2800 rpm make it the ideal machine for those who work with wood up to a maximum of 80 mm thick and 250 mm wide.

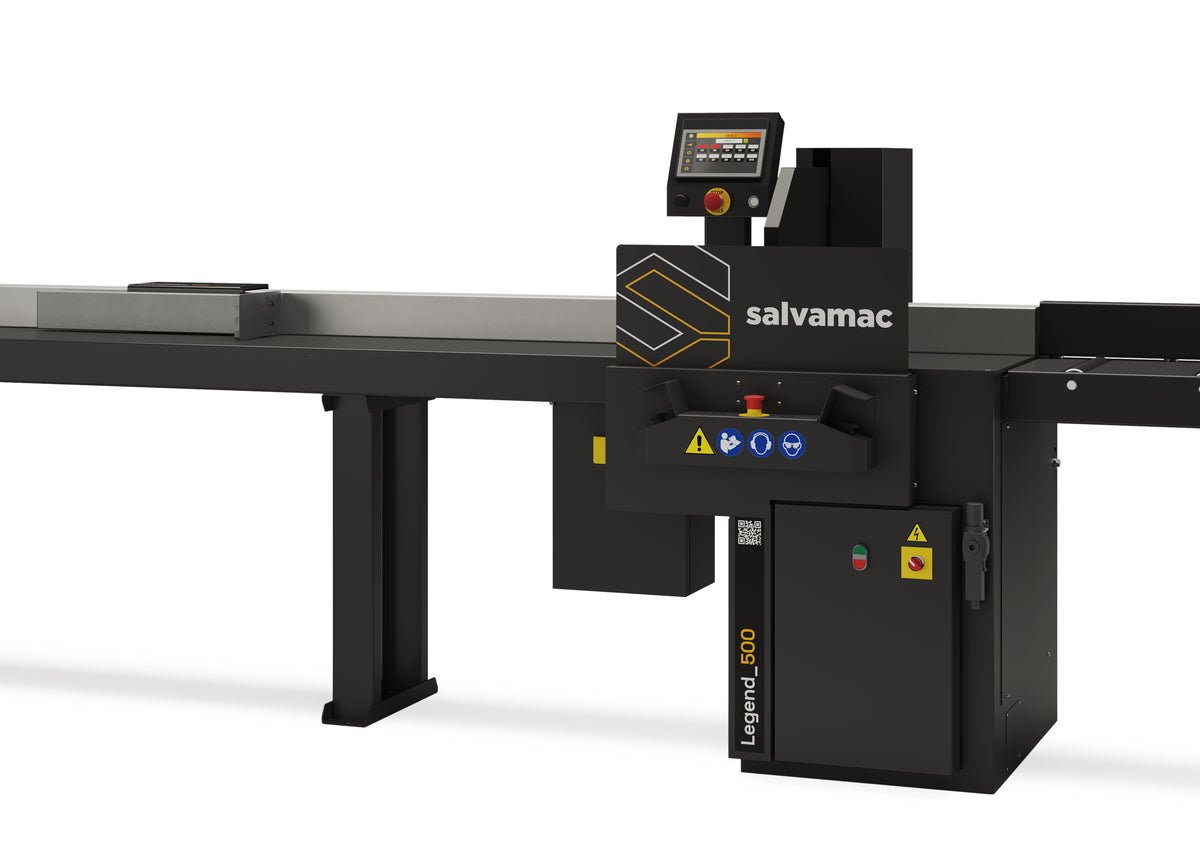

Legend 500
Semi-automatic upstroke saw for quick, safe and accurate crosscutting of medium cutting sections up to 125 mm thickness. The Legend 500 has a completely painted, thick and reinforced steel structure. The blade with a diameter of 500 mm, the power of 5.5 kW and the rotation speed of 2800 rpm make it the ideal machine for those who work with wood up to a maximum of 125 mm thick and 310 mm wide (optional up to 375 mm).
Legend 550
Semi-automatic upstroke saw for quick, safe and accurate crosscutting of medium-big cutting sections up to 150 mm thickness. The Legend 550 has a completely painted, thick and reinforced steel structure. The blade with a diameter of 550 mm, the power of 7.5 kW and the rotation speed of 2800 rpm make it the ideal machine for those who work with wood up to a maximum of 150 mm thick and 330 mm wide.

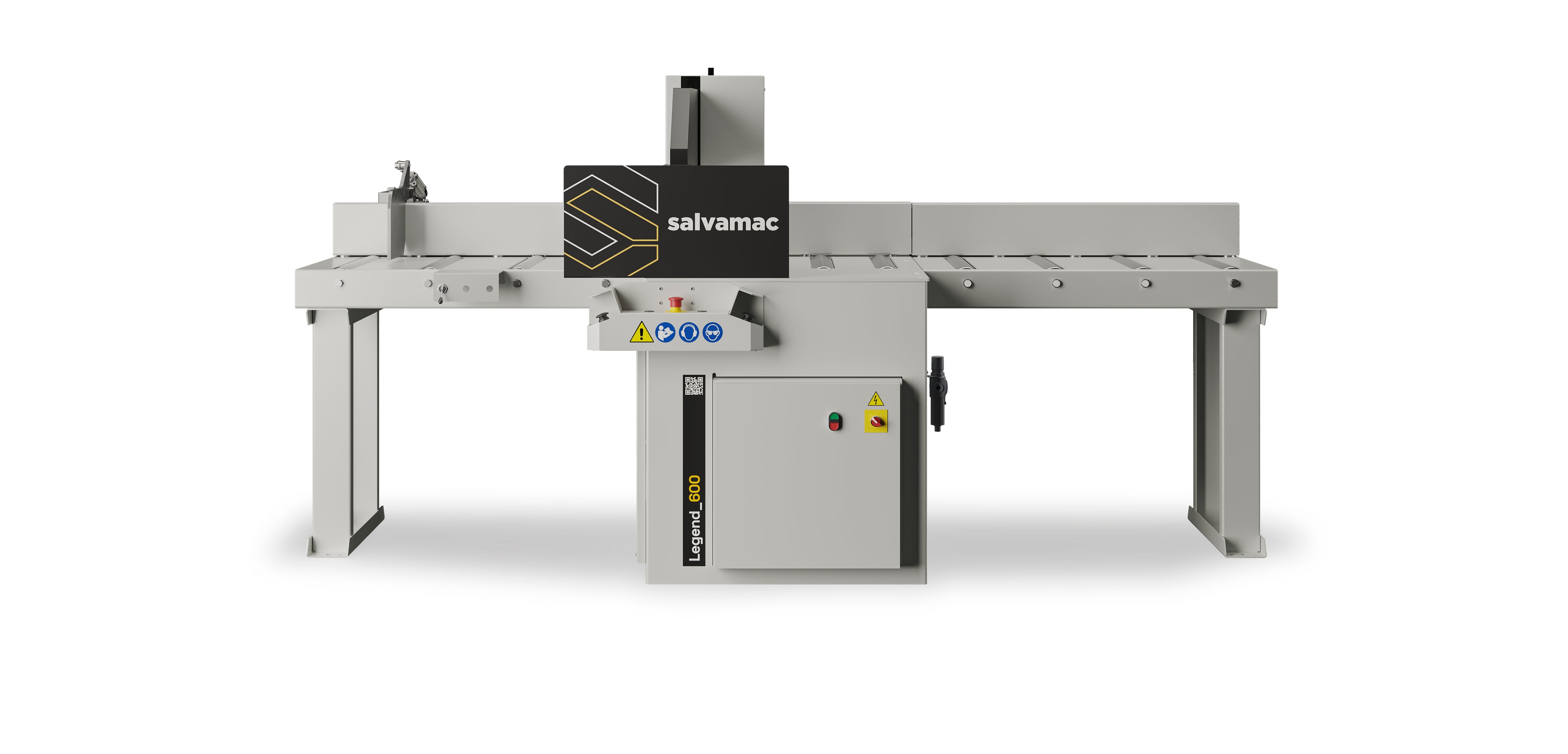

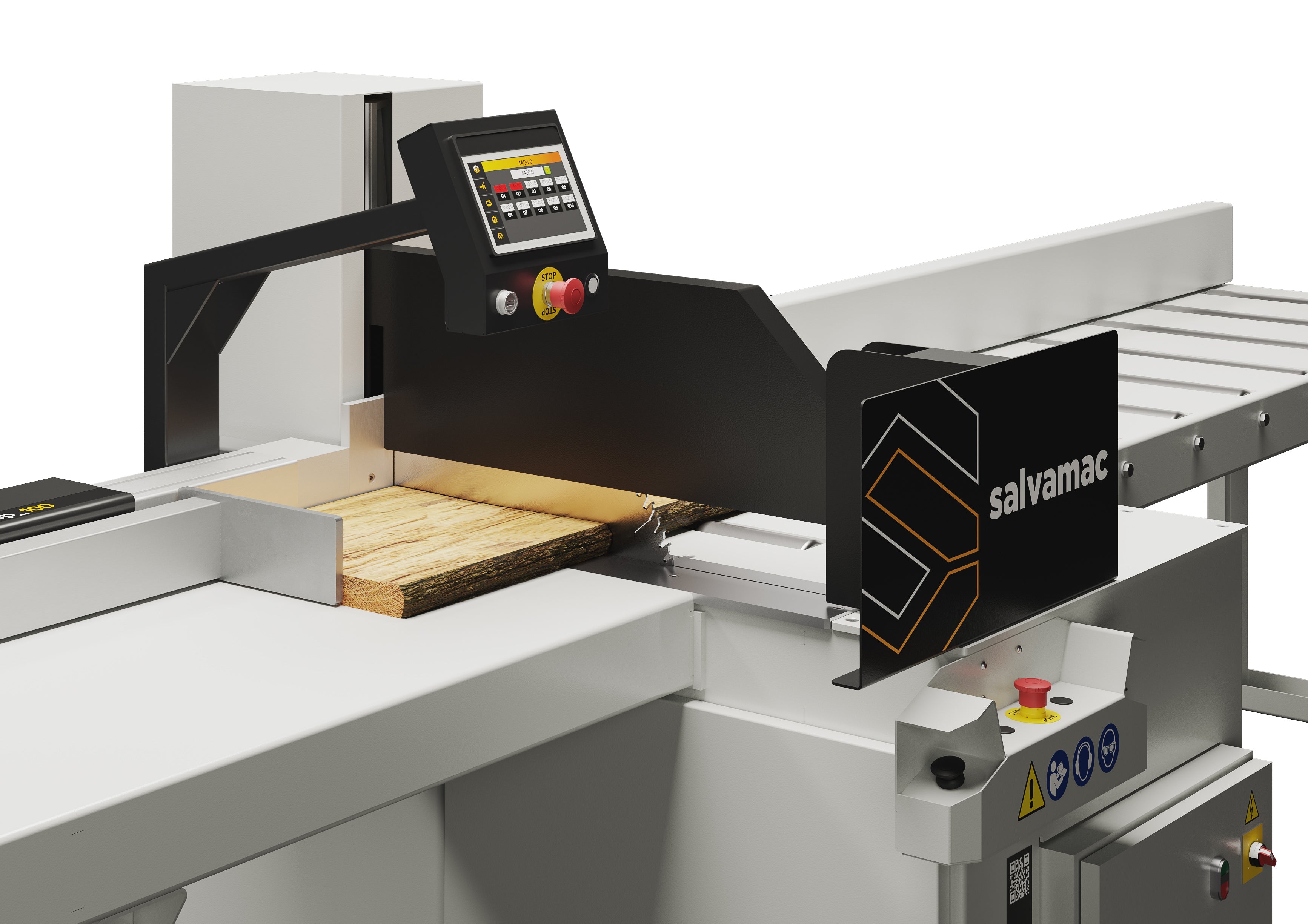

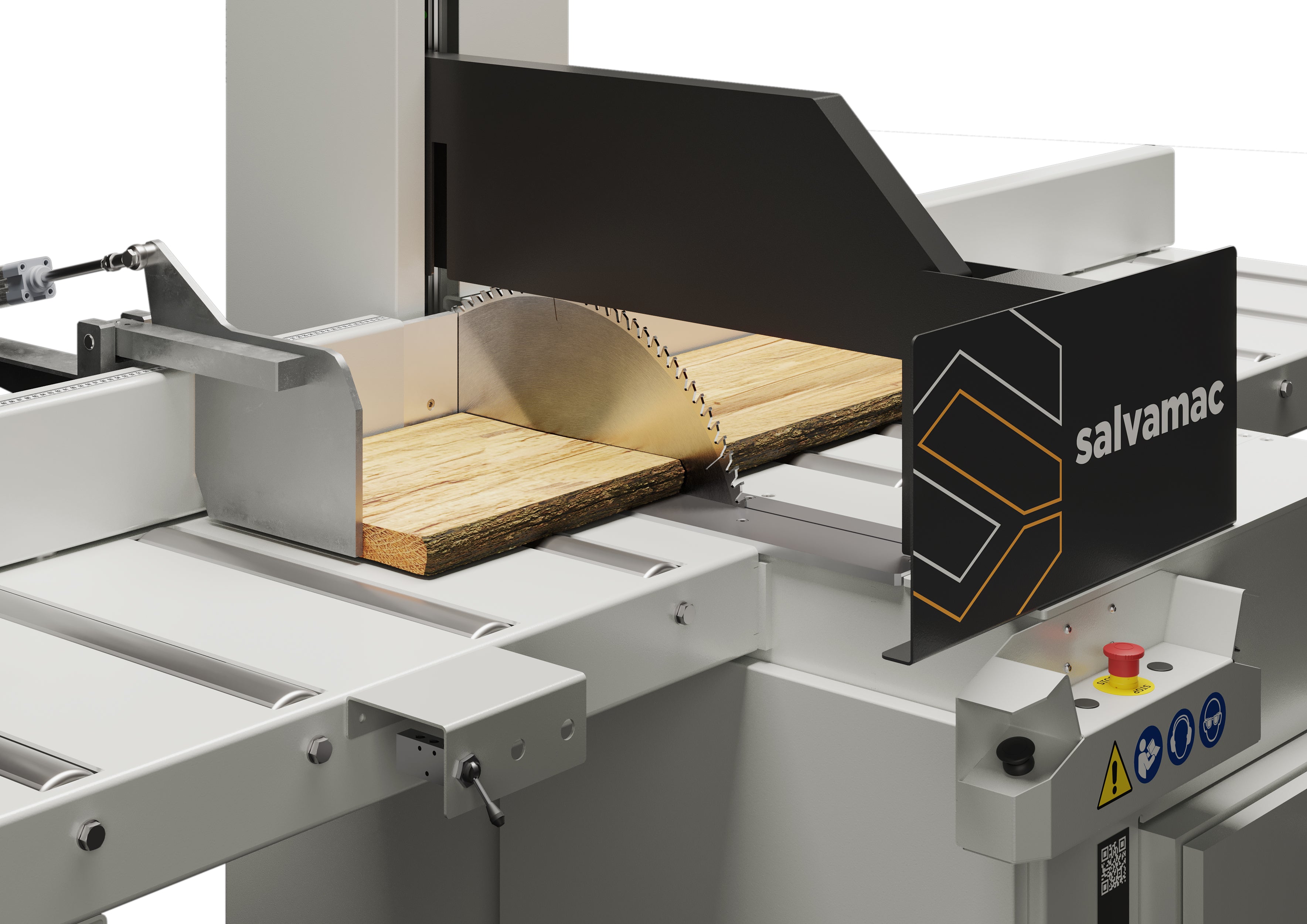

Legend 600
Semi-automatic saw with tilting cut system for quick, safe and accurate crosscutting of big cutting sections up to 150 mm thickness. The Legend 600 has a completely painted, thick and reinforced steel structure. The blade with a diameter of 600 mm, the power of 9.2 kW and the rotation speed of 2750 rpm make it the ideal machine for those who work with wood up to a maximum of 150 mm thick and 610 mm wide.
Legend 650
Semi-automatic crosscut saw with tilting blade movement for fast, safe, and quality cuts for large sections up to 200 mm thick. The Legend 650 features a reinforced, thick, and painted hard steel structure. With a 650 mm diameter blade, 11 kW power, and a rotation speed of 2750 rpm, it is the ideal machine for woodworking up to a maximum thickness of 200 mm and a width of 610 mm.
| Specification | Legend 400 | Legend 500 | Legend 550 | Legend 600 | Legend 650 |
|---|---|---|---|---|---|
| Blade Motor Power | 3.0 kW | 5.5 kW | 7.5 kW | 9.2 kW | 11 kW |
| Blade Rotation Speed | 2800 rpm | 2800 rpm | 2800 rpm | 2750 rpm | 2750 rpm |
| Air Consumption per Cycle | 5 Nl | 7 Nl | 7 Nl | 14 Nl | 14 Nl |
| Suction Ports | 1×120 mm / 1×100 mm | 1×120 mm / 1×100 mm | 1×120 mm / 1×100 mm | 2×140 mm | 2×140 mm |
| Max Cutting Thickness | 80 mm (220 mm) | 125 mm (220 mm) | 150 mm (220 mm) | 150 mm (420 mm) | 200 mm (300 mm) |
| Max Cutting Width | 250 mm (50 mm) | 310 mm (50 mm) | 330 mm (50 mm) | 610 mm (30 mm) | 610 mm (30 mm) |
